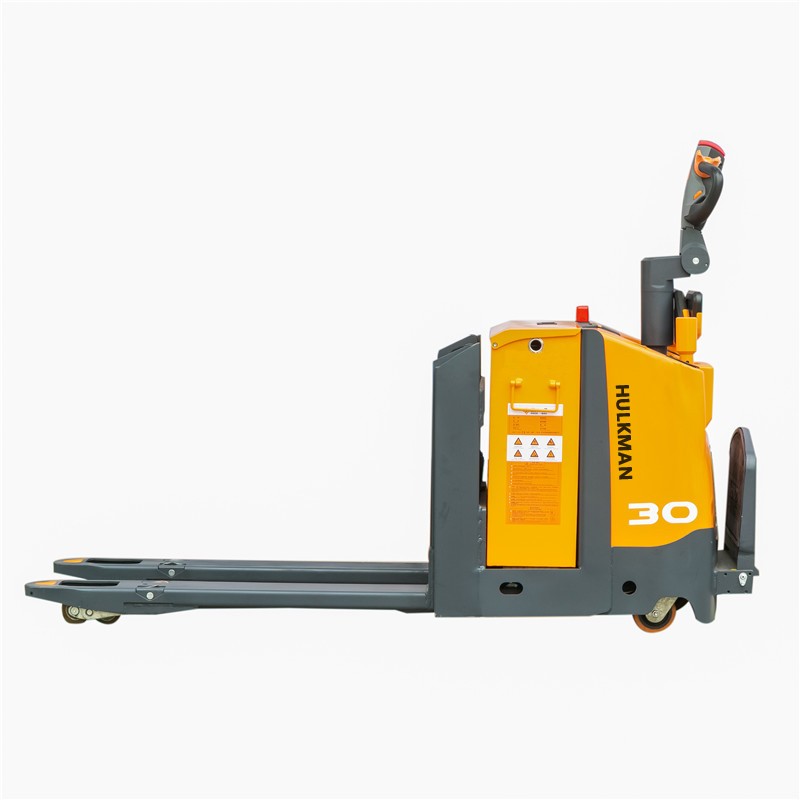

3.0 Ton/3.5 Ton Electric Pallet Truck
Product ID : TPAT30/TPAT35
Product Description
| Identification | 1 | Product model designation | TPAT30 | TPAT35 | |
| 2 | Drive unit | Electric | Electric | ||
| 3 | Operate type | Standing | Standing | ||
| 4 | Load capacity | Q kg | 3000 | 3500 | |
| 5 | Load center | C mm | 600 | 600 | |
| 6 | Load distance, Center of drive axle to fork back |
X mm | 190 | 190 | |
| 7 | Wheelbase | Y mm | 1600 | 1600 | |
| weight | 1 | Truck weight (without battery) | kg | 630 | 650 |
| 2 | Axle loading , loaded(front/rear) | kg | 1215/2003 | 1215/2003 | |
| 3 | Axle loading , unloading(front/rear) | kg | 547/143 | 547/143 | |
| Wheel | 1 | Tires | Polyurethane | Polyurethane | |
| 2 | Drive wheels size | mm | Φ230×75 | Φ230×75 | |
| 3 | Loaded wheels size | mm | Φ85×70 | Φ85×70 | |
| 4 | Balance wheels size | mm | Φ125×60 | Φ125×60 | |
| 5 | Wheels number, front/rear(x=driven wheels) | 1x-2/4 | 1x-2/4 | ||
| 6 | Tread ,front | mm | 558 | 558 | |
| 7 | Tread ,rear | mm | 340/390/500 | 340/390/500 | |
| Dimensions | 1 | Height, mast lowered | h1mm | 1361 | 1361 |
| 2 | Lift height | h3mm | 205 | 205 | |
| 3 | Forks height, lowered | h5mm | 85 | 85 | |
| 4 | Height of tiller in drive Position(max/min) | h6mm | 1345/985 | 1345/985 | |
| 5 | Overall length | L1mm | 2062 | 2062 | |
| 6 | Length to face of forks | L2mm | 912 | 912 | |
| 7 | Overall width | b1mm | 786 | 786 | |
| 8 | Fork dimensions | s/e/lmm | 180/55/1150 | 180/55/1150 | |
| 9 | Maximum forks width | b3mm | 520/570/680 | 520/570/680 | |
| # | Minimum ground clearance | Mmm | 25 | 25 | |
| # | Aisle width for pallets 800x1200 lengthways | Astmm | 2560 | 2560 | |
| # | Turning radius | Wamm | 1893 | 1893 | |
| Performance | 1 | Travel speed loaded/unload | km/h | 4.8/5.6 | 4.8/5.6 |
| 2 | Lift speed loaded/unload | mm/s | 40/50 | 40/50 | |
| 3 | Lowering speed loaded/unload | mm/s | 50/40 | 50/40 | |
| 4 | Max grade ability loaded/unload | % | 8/15 | 5/8 | |
| 5 | Service brake | Electromagnetic brake | Electromagnetic brake | ||
| Electric motor | 1 | Drive motor rating | kw | 2 | 2.5 |
| 2 | Lift motor rating | kw | 2.2kw | 2.2kw | |
| 3 | Battery voltage/capacity | V/Ah | 24/240 | 24/300 | |
| 4 | Battery weight | kg | 220 | 260 | |
| others | 1 | Control unit type | Mosfet control | Mosfet control | |
| 2 | Sound level | dB(A) | <70 | <70 |
