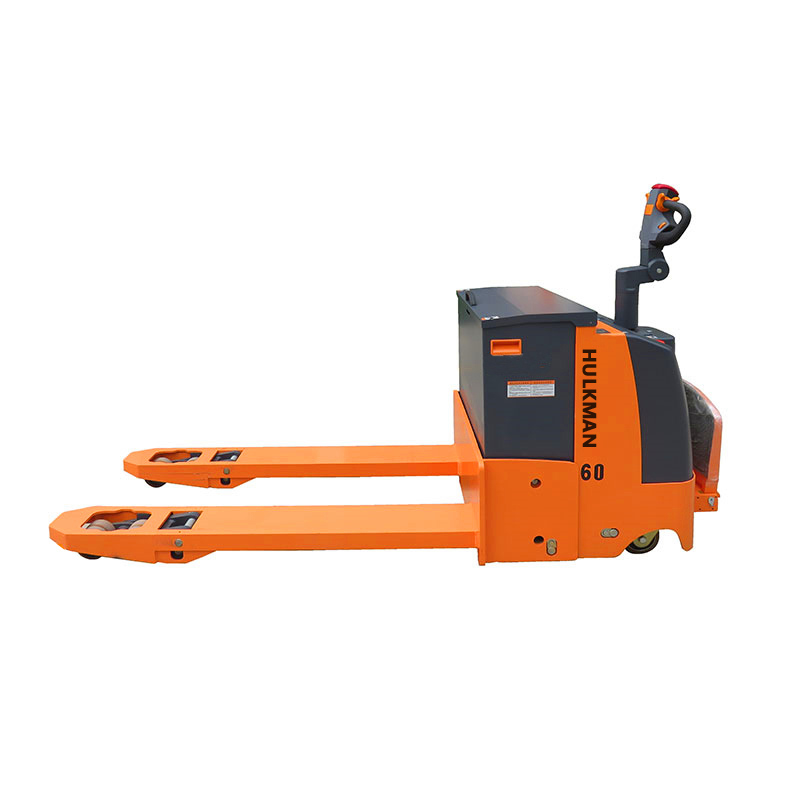

4.0 Ton/5.0 Ton/6.0 Ton/7.0 Ton Electric Pallet Truck
Product ID : TP40/TP50/TP60/TP70
Product Description
| 1 | Product model | TP40 | TP50 | TP60 | TP70 | ||
| 2 | Drive unit | Electric | Electric | Electric | Electric | ||
| 3 | Operate type | Standing | Standing | Standing | Standing | ||
| 4 | Load capacity | Q kg | 4000 | 5000 | 6000 | 7000 | |
| 5 | Load center | C mm | 850 | 850 | 850 | 850 | |
| 6 | Load distance, Center of drive axle to fork back |
X mm | 248 | 248 | 248 | 248 | |
| 7 | Wheelbase | Y mm | 2162 | 2195 | 2195 | 2172 | |
| 1 | Truck weight (without battery) | kg | 1450 | 1650 | 1650 | 1700 | |
| 1 | Tires | Polyurethane | Polyurethane | Polyurethane | Polyurethane | ||
| 2 | Drive wheels size | mm | Φ248×75 | Φ248×75 | Φ248×75 | Φ248×75 | |
| 3 | Loaded wheels size | mm | Φ90×88 | Φ125×50 | Φ125×50 | Φ160×50 | |
| 4 | Balance wheels size | mm | Φ150×50 | Φ150×50 | Φ150×50 | Φ150×50 | |
| 5 | Wheels number, front/rear(x=driven wheels) | 1x-4/4 | 1x-4/8 | 1x-4/8 | 1x-4/8 | ||
| 6 | Tread ,front | mm | 687 | 687 | 687 | 687 | |
| 7 | Tread ,rear | mm | 470 | 470 | 470 | 470 | |
| 1 | Height, mast lowered | h1mm | 1465 | 1465 | 1465 | 1465 | |
| 2 | Lift height | h3mm | 215 | 250 | 250 | 300 | |
| 3 | Forks height, lowered | h5mm | 95 | 130 | 130 | 170 | |
| 4 | Height of tiller in drive Position(max/min) | h6mm | 1405/1192 | 1405/1192 | 1405/1192 | 1405/1192 | |
| 5 | Overall length | L1mm | 2715 | 2735 | 2735 | 2735 | |
| 6 | Length to face of forks | L2mm | 1065 | 1085 | 1085 | 1085 | |
| 7 | Overall width | b1mm | 900 | 900 | 900 | 900 | |
| 8 | Fork dimensions | s/e/lmm | 210/70/1650 | 230/85/1650 | 230/85/1650 | 230/85/1650 | |
| 9 | Maximum forks width | b3 mm | 700 | 700 | 700 | 700 | |
| 10 | Minimum ground clearance(unload) | M mm | 25 | 32 | 32 | 42 | |
| 11 | Aisle width for pallets 800x1200 lengthways | Ast mm | - | - | - | - | |
| 12 | Turning radius | Wa mm | 2495 | 2536 | 2536 | 2536 | |
| 1 | Travel speed loaded/unload | km/h | 3.6/4 | 3.6/4 | 3.6/4 | 2.5/3 | |
| 2 | Lift speed loaded/unload | mm/s | 28/40 | 28/40 | 28/40 | 28/40 | |
| 3 | Lowering speed loaded/unload | mm/s | 45/40 | 45/40 | 45/40 | 45/40 | |
| 4 | Max grade ability loaded/unload | % | 2.5/8 | 2.5/8 | 2.5/8 | 2.5/8 | |
| 5 | Service brake | Electromagnetic brake | Electromagnetic brake | Electromagnetic brake | Electromagnetic brake | ||
| 1 | Drive motor rating | kw | 3 | 3 | 3 | 3 | |
| 2 | Lift motor rating | kw | 3 | 3 | 3 | 3 | |
| 3 | Battery voltage/capacity | V/Ah | 24/320 | 24/360 | 24/360 | 24/400 | |
| 4 | Battery weight | kg | 260 | 340 | 340 | 340 | |
| 1 | Control unit type | Mosfet control | Mosfet control | Mosfet control | Mosfet control | ||
| 2 | Sound level | dB(A) | <70 | <70 | <70 | <70 |
