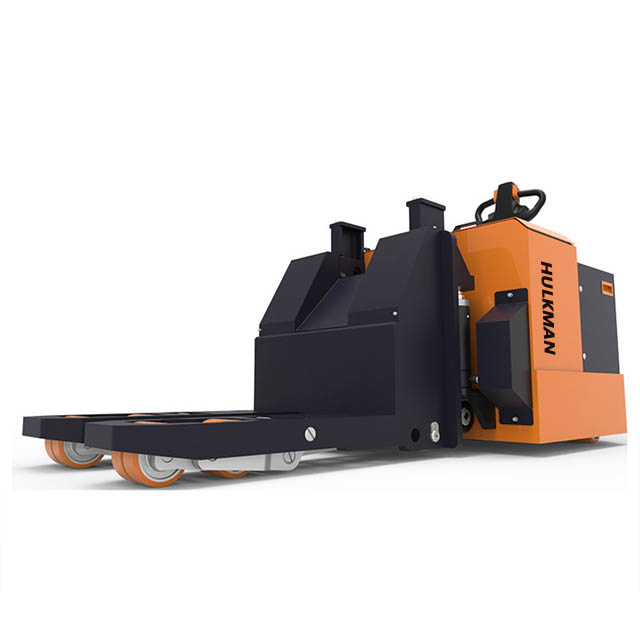

10.0 Ton/12.0 Ton Heavy Duty Electric Pallet Truck
Product ID : TP100/TP120
Product Description
| Identification | 1 | Model | TP100 | TP120 | ||
| 2 | Power supply | Electric | Electric | |||
| 3 | Drive type | Standing | Standing | |||
| 4 | Load capacity | Q kg | 10000 | 12000 | ||
| 5 | Load center | C mm | 850 | 850 | ||
| 6 | Load distance, Center of drive axle to fork back |
X mm | 295 | 295 | ||
| 7 | Wheelbase | Y mm | 2258 | 2258 | ||
| weight | 1 | Self weight（with battery） | kg | 2410 | 2510 | |
| Wheels | 1 | Tyres | Polurethane | Polurethane | ||
| 2 | Drive wheel size | mm | Φ310×140 | Φ310×140 | ||
| 3 | Load wheel size | mm | Φ200×60 | Φ200×60 | ||
| 4 | Balance wheel size | mm | Φ150×60 | Φ150×60 | ||
| 5 | Wheels qty（Front/Rear）（x=drive wheel） | 1x-4/8 | 1x-4/8 | |||
| 6 | Tread, Front | mm | 830 | 830 | ||
| 7 | Tread, Rear | mm | 470 | 470 | ||
| Basic data | 1 | Overall height | h1mm | 1355 | 1355 | |
| 2 | Lift height | h3mm | 300 | 300 | ||
| 3 | Fork height（lowerest） | h5mm | 200 | 200 | ||
| 4 | Height of tiller in drive position（Max/Min) | h6mm | 1290/1092 | 1290/1092 | ||
| 5 | Overall length（platform folded） | L1mm | 2840.5 | 2840.5 | ||
| 6 | Length to face of fork | L2mm | 1590.5 | 1590.5 | ||
| 7 | Overall width | b1mm | 1220 | 1220 | ||
| 8 | Fork size | s/e/lmm | 278/118/1650 | 278/118/1650 | ||
| 9 | Fork width | b3 mm | 900 | 900 | ||
| 10 | Ground clearance（Unloaded） | M mm | 80 | 80 | ||
| 11 | Aisle width for pallets 800x1200 lengthways | Ast mm | - | - | ||
| 12 | Turning radidus | Wa mm | 2965 | 2965 | ||
| Performance | 1 | Drive speed Loaded/Unloaded | km/h | 3.6/4 | 3/3.5 | |
| 2 | Lift speed Loaded/Unloaded | mm/s | 28/40 | 28/40 | ||
| 3 | Lower speed Loaded/unloaded | mm/s | 45/40 | 45/40 | ||
| 4 | Max Gradeability Loaded/unloaded | % | 2.5/8 | 2/6 | ||
| 5 | Service brake | Electromagnetic brake | Electromagnetic brake | |||
| Electric motor | 1 | Drive motor rating | kw | 4.5 | 4.5 | |
| 2 | Lift motor rating | kw | 6.3 | 6.3 | ||
| 3 | Battery voltage/capacity | V/Ah | 48/280 | 48/320 | ||
| 4 | Battery weight | kg | - | - | ||
| others | 1 | Control unit type | Mosfet control | Mosfet control | ||
| 2 | Sound level | dB(A) | <70 | <70 |
