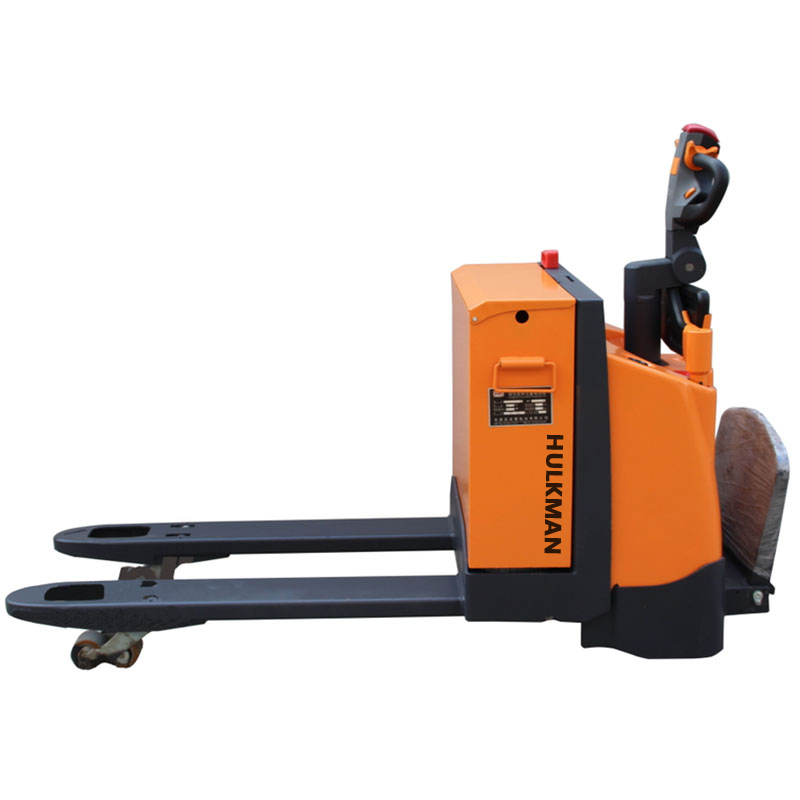

2.0 Ton/ 2.5 Ton Electric Pallet Truck
Product ID : TPA20/TPA25
Product Description
| 1 | Product model designation | TPA20 | TPA25 | ||
| 2 | Drive unit | Electric | Electric | ||
| 3 | Operate type | Standing | Standing | ||
| 4 | Load capacity | Q kg | 2000 | 2500 | |
| 5 | Load center | C mm | 600 | 600 | |
| 6 | Load distance, Center of drive axle to fork back |
X mm | 190 | 190 | |
| 7 | Wheelbase | Y mm | 1460 | 1460 | |
| 1 | Truck weight (without battery) | kg | 500 | 500 | |
| 2 | Axle loading , loaded(front/rear) | kg | 1077/1696 | 1215/2003 | |
| 3 | Axle loading , unloading(front/rear) | kg | 540/140 | 547/143 | |
| 1 | Tires | Polyurethane | Polyurethane | ||
| 2 | Drive wheels size | mm | Φ230×75 | Φ230×75 | |
| 3 | Loaded wheels size | mm | Φ80×70 | Φ80×70 | |
| 4 | Balance wheels size | mm | Φ100×40 | Φ100×40 | |
| 5 | Wheels number, front/rear(x=driven wheels) | 1x-2/4 | 1x-2/4 | ||
| 6 | Tread ,front | mm | 518 | 518 | |
| 7 | Tread ,rear | mm | 340/390/500 | 340/390/500 | |
| 1 | Height, mast lowered | h1mm | 1345 | 1345 | |
| 2 | Lift height | h3mm | 205 | 205 | |
| 3 | Forks height, lowered | h5mm | 85 | 85 | |
| 4 | Height of tiller in drive Position(max/min) | h6mm | 1345/985 | 1345/985 | |
| 5 | Overall length | L1mm | 1910 | 1910 | |
| 6 | Length to face of forks | L2mm | 760 | 760 | |
| 7 | Overall width | b1mm | 780 | 780 | |
| 8 | Fork dimensions | s/e/lmm | 180/55/1150 | 180/55/1150 | |
| 9 | Maximum forks width | b3mm | 520/570/680 | 520/570/680 | |
| 10 | Minimum ground clearance | Mmm | 30 | 30 | |
| 11 | Aisle width for pallets 800x1200 lengthways | Astmm | 2312 | 2312 | |
| 12 | Turning radius | Wamm | 1742 | 1742 | |
| 1 | Travel speed loaded/unload | km/h | 5.2/6 | 4.8/5.6 | |
| 2 | Lift speed loaded/unload | mm/s | 40/50 | 40/50 | |
| 3 | Lowering speed loaded/unload | mm/s | 50/40 | 50/40 | |
| 4 | Max grade ability loaded/unload | % | 8/15 | 8/15 | |
| 5 | Service brake | Electromagnetic brake | Electromagnetic brake | ||
| 1 | Drive motor rating | kw | 1.5 | 1.5 | |
| 2 | Lift motor rating | kw | 2.2kw | 2.2kw | |
| 3 | Battery voltage/capacity | V/Ah | 24/180 | 24/210 | |
| 4 | Battery weight | kg | 180 | 190 | |
| 1 | Control unit type | Mosfet control | Mosfet control | ||
| 2 | Sound level | dB(A) | <70 | <70 | |
