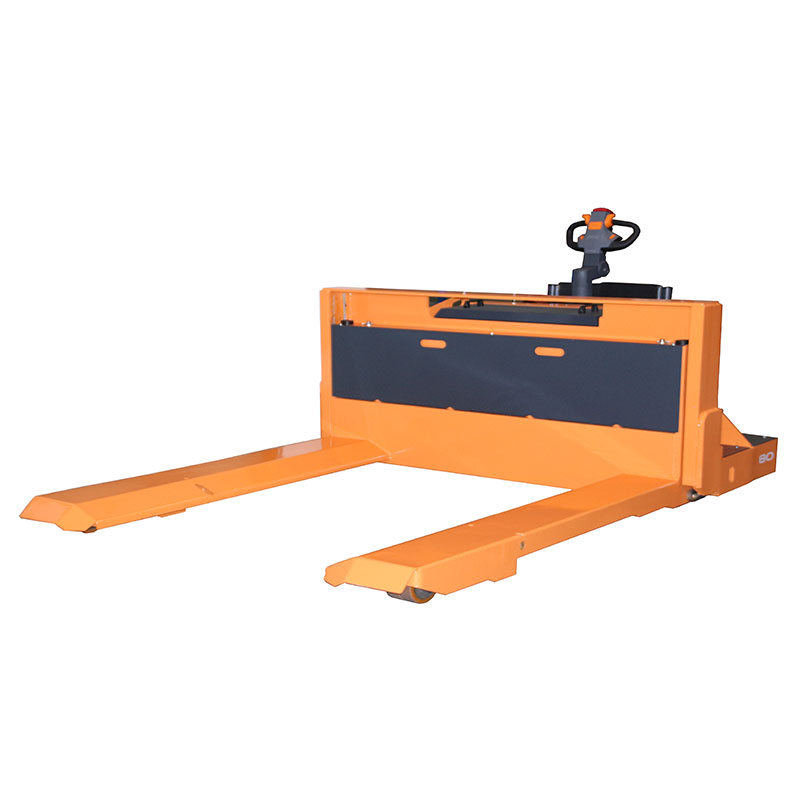

8.0 Ton Customized Pallet Roll Electric Pallet Truck
Product ID : TPK80
Product Description
| Specification | 1 | Model | TPK80 | ||
| 2 | Power supply | Electric | |||
| 3 | Driving type | Standing on | |||
| 4 | Rated load capacity | Q kg | 8000 | ||
| 5 | load center | C mm | 600 | ||
| 6 | Tread ,rear | X mm | 242 | ||
| 7 | Wheel base | Y mm | 1840 | ||
| Weight | 1 | Self weight（without battery） | kg | As designed | |
| Wheels | 1 | Tyres | PU | ||
| 2 | Drive wheel size | mm | Φ248×75 | ||
| 3 | Load wheel size | mm | Φ160×50 | ||
| 4 | Balance wheel size | mm | Φ150×50 | ||
| 5 | Wheels qty（Front/Rear）（x=drive wheel） | 1x-4/8 | |||
| 6 | Wheel distance=front | mm | 687 | ||
| 7 | Wheel distance=rear | mm | 1520 | ||
| Basic data | 1 | h1mm | 1465 | ||
| 2 | Lifing height | h3mm | 290 | ||
| 3 | Fork height（lowerest height） | h5mm | 170 | ||
| 4 | Handle height（Max/Min/) | h6mm | 1405/1192 | ||
| 5 | Overall length（Platform folded） | L1mm | As designed | ||
| 6 | Length to face of forks | L2mm | As designed | ||
| 7 | Overall width | b1mm | As designed | ||
| 9 | Fork width | b3 mm | As designed | ||
| 10 | Min groundclearance（Unload） | M mm | 30 | ||
| 11 | Aisle width lengthways Pallet 800*1200 |
Ast mm | - | ||
| 12 | Turning radidus | Wa mm | 2160 | ||
| Perofrmance | 1 | Drive speed Loaded/unloaded | km/h | 2/2.5 | |
| 2 | Lifting speed Loaded/unloaded | mm/s | 28/40 | ||
| 3 | Lowering speed Loaded/unloaded | mm/s | 45/40 | ||
| 4 | Maximum gradeability Loaded/unloaded | % | 2.5/8 | ||
| 5 | Brake | Electromagnetic brake | |||
| Motor | 1 | Driving motor power | kw | 3 | |
| 2 | Lifting motor power | kw | 3 | ||
| 3 | Battery voltage and capacity | V/Ah | 24/400 | ||
| 4 | Battery weight | kg | 340 | ||
| Others | 1 | Control unit type | Mosfet control | ||
| 2 | Noise | dB(A) | <70 |
