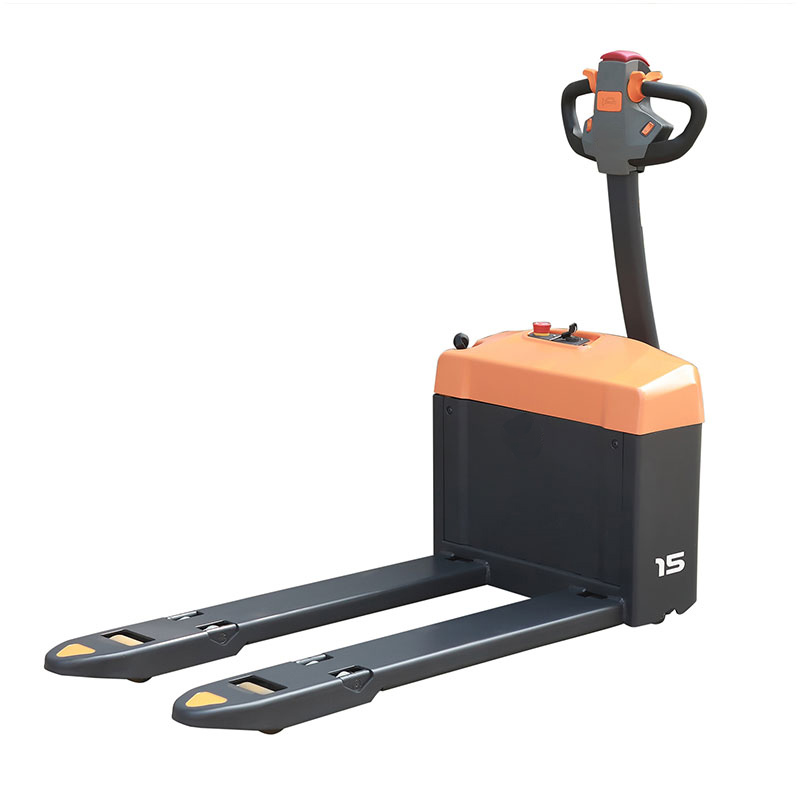

1.5 Ton Electric Pallet Truck
Product ID : TPC15
Product Description
| Identification | 1 | Product model | TPC15 | |
| 2 | Drive unit | Electrics | ||
| 3 | Operating type | Pedestrian | ||
| 4 | Load capacity | Q kg | 1500 | |
| 5 | Load center distance | C mm | 600 | |
| 6 | Load distance, center of drive axle to back of fork | X mm | 190 | |
| 7 | Wheelbase | Y mm | 1300 | |
| Weight | 1 | Truck weight (without battery) | kg | 242 |
| 2 | Axle loading, loaded (front/rear) | kg | 585/1157 | |
| 3 | Axle loading, unloading (front/rear) | kg | 169/73 | |
| Wheel | 1 | Tires | PU | |
| 2 | Tire size, front | mm | Φ210×70 | |
| 3 | Tire size, rear | mm | Φ80×70 | |
| 4 | Tire size, balance wheel | mm | - | |
| 5 | Wheels, number front/rear (x = driven wheels) | 1x-2 | ||
| 6 | Tread,front | mm | - | |
| 7 | Tread, rear | mm | 360/410/520 | |
| Dimension | 1 | overall height | h1mm | 1245 |
| 2 | lifting height | h3mm | 205 | |
| 3 | Fork , lowered | h5mm | 85 | |
| 4 | Min. / max. of handle in drive position | h6mm | 1160/719 | |
| 5 | Overall length | L1mm | 1642 | |
| 6 | Length to face of forks | L2mm | 492 | |
| 7 | Overall width | b1mm | 630 | |
| 8 | Fork dimensions | s/e/lmm | 160/56/1150 | |
| 9 | Fork width | b3mm | 520/570/680 | |
| 10 | Ground clearance, centre of wheelbase(min) | Mmm | 24 | |
| 11 | Aisle for pallets 1000 × 1200 crossways | Astmm | 2124 | |
| 12 | Turning radius(min) | Wamm | 1457 | |
| Performance | 1 | Travel speed loaded/unload | km/h | 3.5/4 |
| 2 | Lift speed loaded/unload | mm/s | 40/50 | |
| 3 | Lowering speed oaded/unload | mm/s | 50/40 | |
| 4 | Max. gradeability loaded/unload | % | 4/10 | |
| 5 | Service brake | Electromagnetic | ||
| Electric Motor | 1 | Drive motor rating S2 60 min | kw | 0.75 |
| 2 | Lift motor rating at S3 15 % | kw | 0.8 | |
| 3 | Battery voltage / nominal capacity K5 | V/Ah | 2*12V/80 | |
| 4 | Battery weight | kg | 25*2 | |
| Others | 1 | Type of drive control | ||
| 2 | Noise level | dB(A) | <70 |
